Configuring Palo Alto VM-Series for a three-zone OT lab

Part 2 · Data-plane integration

Scope and outcome

The earlier deployment guide ends with a working PAN-OS management interface and a clean snapshot. This article deliberately starts at that checkpoint. It documents a different engineering problem: turning the standalone appliance into the routed security boundary for a working OT lab.

Architecture

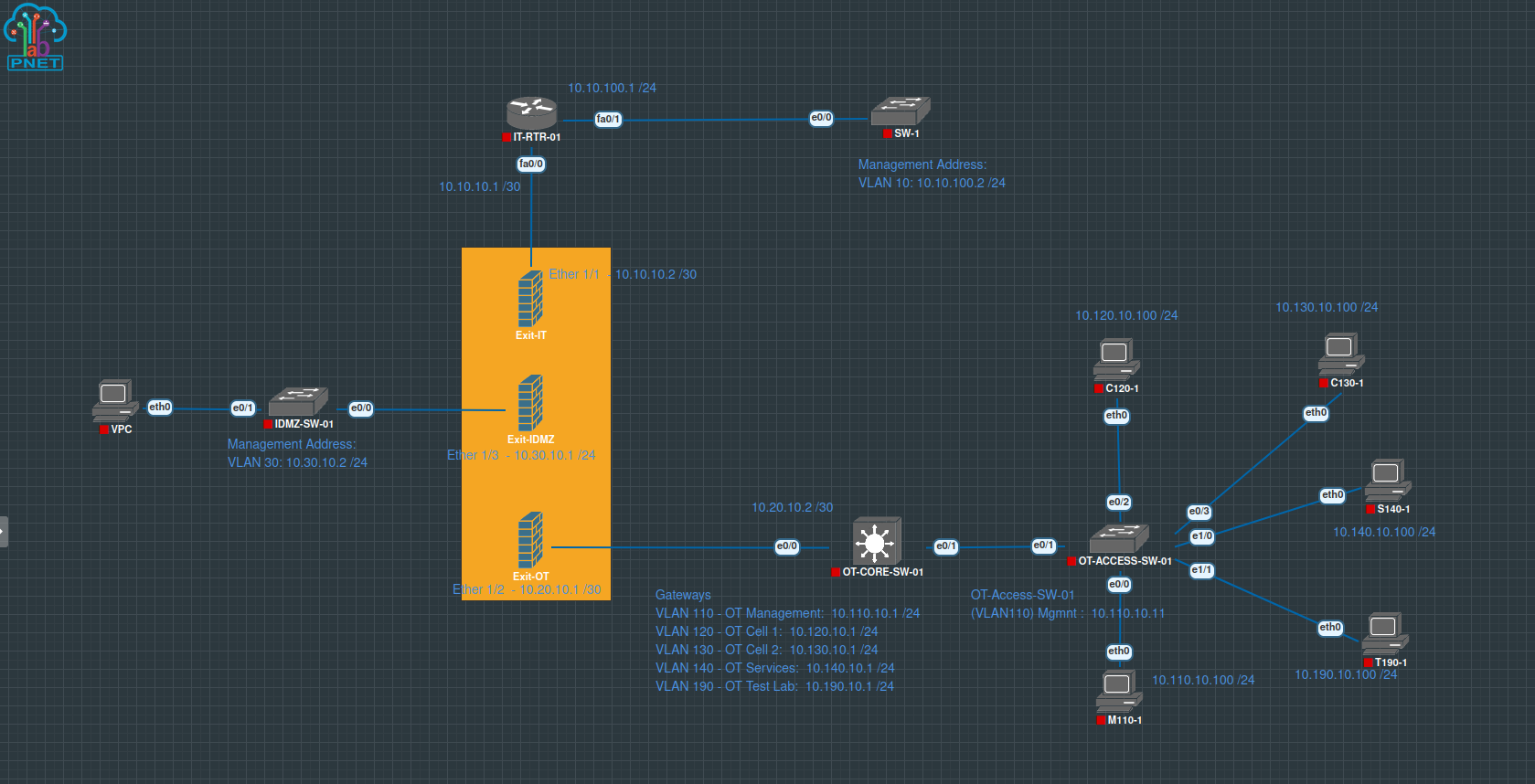

Topology and addressing

The Palo Alto is the inter-zone control point. The OT core retains the gateways for the operational VLANs, while a routed /30 transit carries traffic to the firewall. The IT router performs the same adjacent-router role on the enterprise side.

Stage 1

Attach the PA-VM to the existing Proxmox bridges

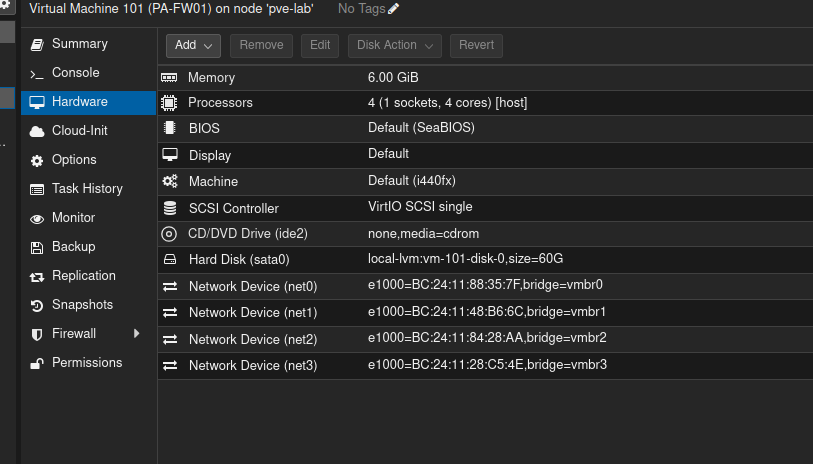

The original VM 101 supplied a known-good reference. Its hardware view showed one management adapter and three data adapters, each assigned to a separate Proxmox bridge.

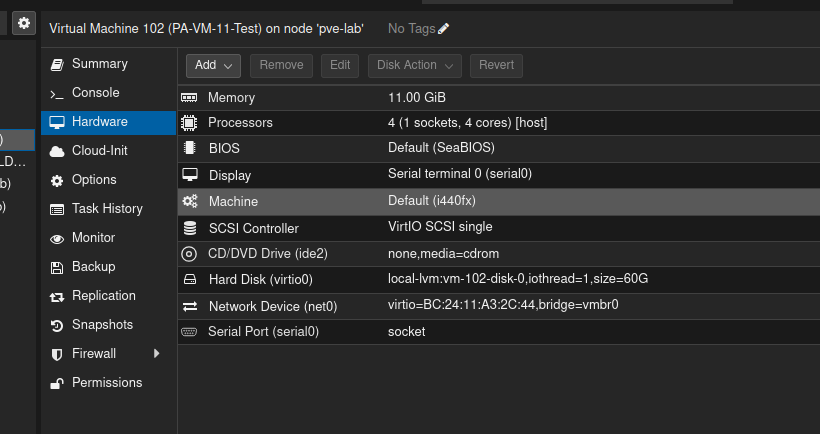

The replacement VM 102 initially had only net0 on vmbr0. PAN-OS displayed its Ethernet interfaces, but no backing virtual adapters existed, so the data-plane links remained down.

No new Linux bridges were required. With VM 102 shut down, three E1000 network devices were added and attached to the existing bridges. MAC-address comparison provides a reliable way to confirm interface order when adapter numbering is uncertain.

Stage 2

Build the PAN-OS data plane

Three Layer 3 zones—Zone-IT, Zone-OT, and Zone-IDMZ—were created first. A virtual router named VR-LAB was then created and assigned all three Ethernet interfaces.

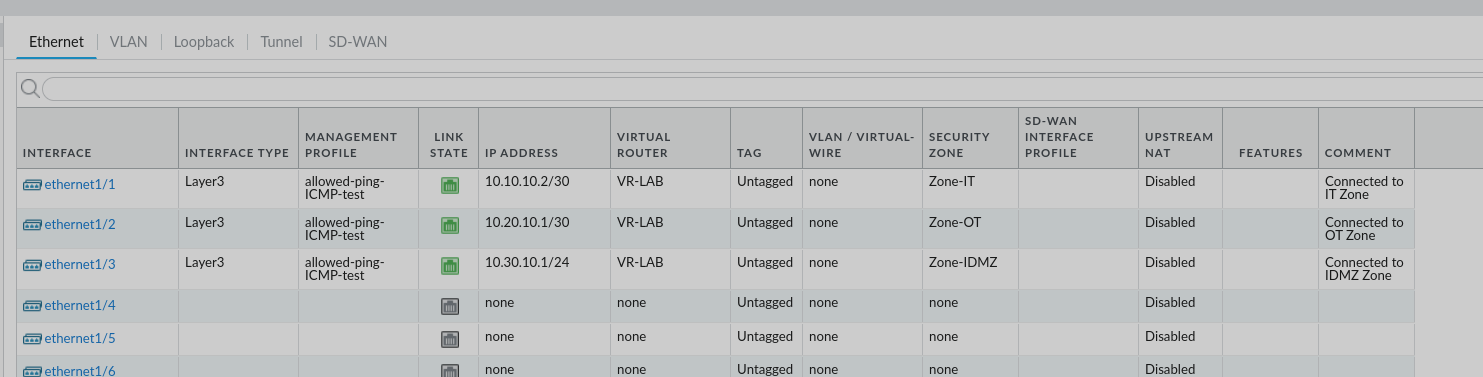

Each interface received its address, virtual router, zone, and a descriptive comment. After the configuration commit and activation of the adjacent devices, all three physical link indicators became green.

The distinction between these objects is important: an address provides Layer 3 identity, the virtual router supplies forwarding decisions, and the zone supplies the boundary used by Security Policy.

Stage 3

Permit only controlled interface testing

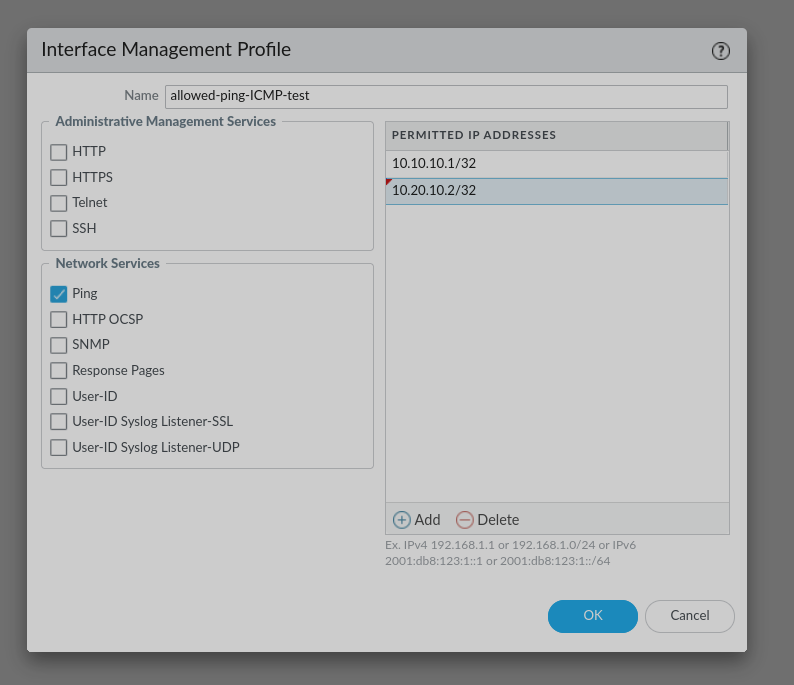

An Interface Management Profile was created with only Ping enabled. The permitted entries identify the source systems allowed to ping the firewall interfaces; they are not the PA-VM destination addresses.

• IT router: 10.10.10.1/32
• OT core: 10.20.10.2/32
• IDMZ switch: 10.30.10.2/32

A packet sent to a PA interface is controlled by this profile. A packet forwarded through the firewall is instead evaluated by Security Policy. Keeping those two paths separate prevents misleading test results.

Stage 4

Install forward and return routes

PAN-OS automatically installs connected routes for the three interface networks. Static routes were required only for destinations beyond the adjacent routers.

IT management route

Destination: 10.10.100.0/24
Interface:   ethernet1/1
Next hop:    10.10.10.1

OT VLAN routes

The following networks use ethernet1/2 and next hop 10.20.10.2:

• 10.110.10.0/24 — OT management
• 10.120.10.0/24 — OT Cell 1
• 10.130.10.0/24 — OT Cell 2
• 10.140.10.0/24 — OT services
• 10.190.10.0/24 — OT test lab

The next hop is the adjacent Layer 3 device that can move the packet closer to the destination—not the firewall's own address. Return routing is equally important: the IT router points OT and IDMZ networks toward 10.10.10.2, while the OT core points IT and IDMZ networks toward 10.20.10.1.

Stage 5

Start with an explicit temporary policy

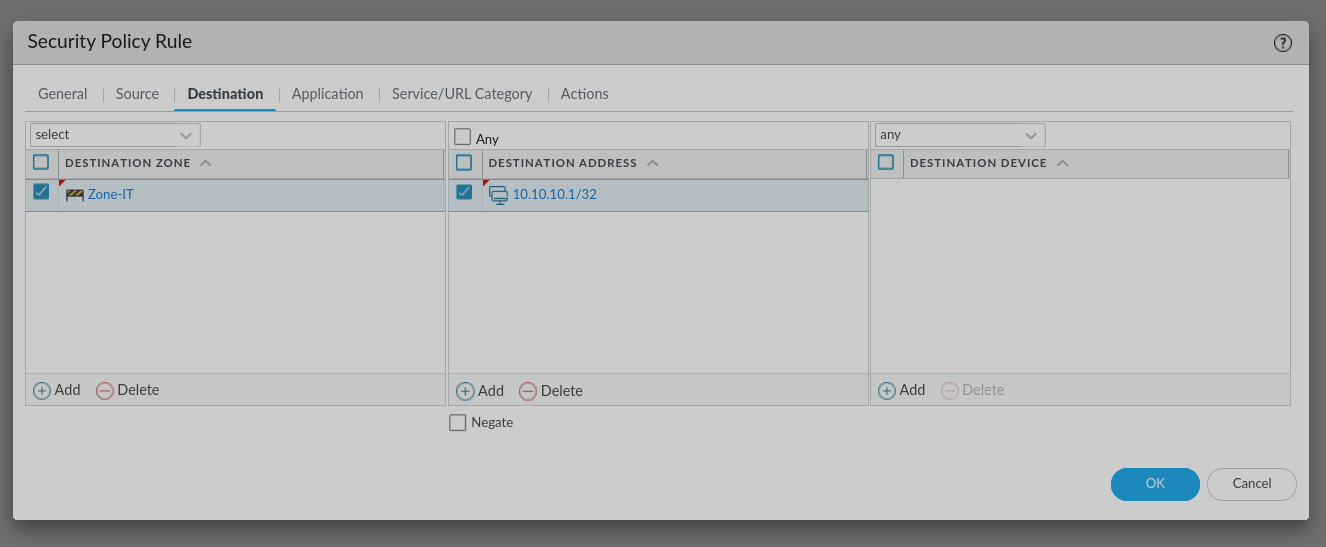

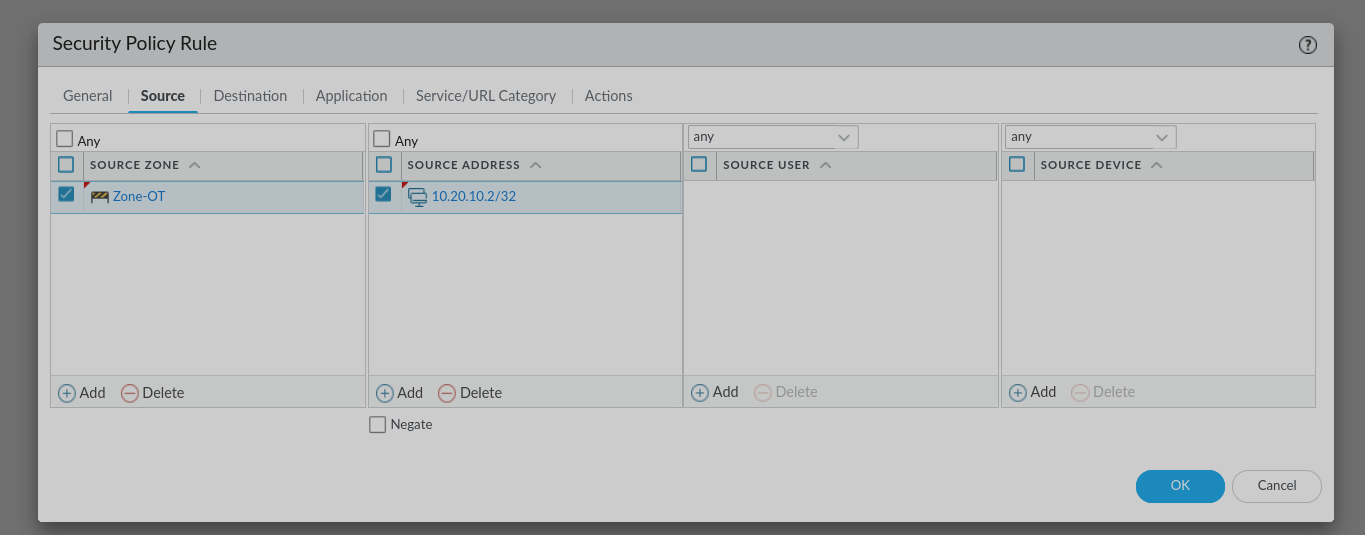

The first transit test used specific host addresses rather than an unrestricted rule:

Source zone:        Zone-OT
Source address:     10.20.10.2/32
Destination zone:   Zone-IT
Destination address: 10.10.10.1/32
Application:        ping
Service:            application-default
Action:             allow
Logging:            session end

This rule does not permit an OT endpoint such as 10.120.10.100. Endpoint validation should use a separate rule with that host as its explicit source. NAT is unnecessary for routing between these internal private lab networks.

Stage 6

Validate in layers

1. Confirm the Proxmox adapters and bridge assignments.
2. Confirm the neighbouring router and switch ports are enabled.
3. Confirm all three PAN-OS links are green.

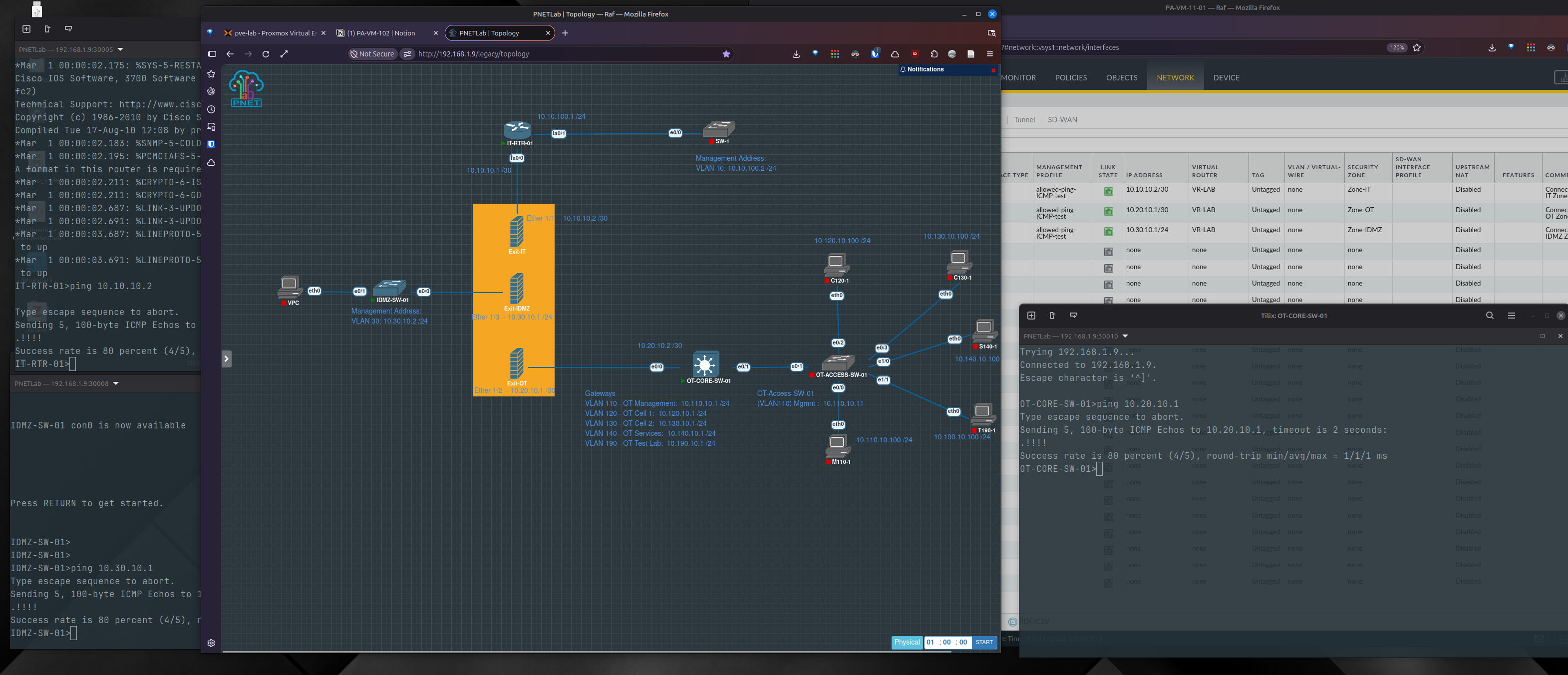

4. Ping each firewall interface from its directly connected neighbour.
5. Test the remote IT and OT networks after checking both forward and return routes.
6. Generate one authorised and one deliberately unauthorised inter-zone flow.
7. Use Monitor → Traffic to confirm the matching allow or deny rule.

The first ICMP request may be lost while ARP resolves the destination MAC address. Four replies from five immediately after a link comes up can therefore indicate successful connectivity rather than persistent loss.

Engineering reflection

Lessons learned

The final configuration creates a repeatable boundary for future OT tests. More advanced work can now focus on application-aware rules, industrial protocol visibility, threat profiles, and controlled IT-to-OT service flows without rebuilding the underlying connectivity.
